Explore our certified catalog of high-pressure, chemical-resistant, and custom-engineered industrial tubing
As a global OEM/ODM manufacturer specializing in high-performance polymer extrusion, precision metallurgy, and custom tubing assemblies, our engineering capabilities address the rigorous demands of civil infrastructure, hydraulic fluid power, telecommunications micro-conduits, and advanced pneumatic transport systems. Operating state-of-the-art multi-layer co-extrusion and cold-drawing facilities, we supply Tier-1 industrial buyers, EPC contractors, and OEM brands with fully customizable durable tubes engineered for extreme operating environments.
Our commitment to rigorous quality assurance is backed by full batch traceability, precise ID/OD dimensional tolerances, and international compliance standardizations including ISO 4427, EN 12201, DIN 2391, and ASTM F2160. Every production run undergoes rigorous hydro-static pressure testing, tensile stress analysis, and thermal aging verification to ensure zero-defect reliability across demanding global supply chains.
Analyzing material shifts, polymer rheology advances, and metallurgical hone precision in modern industrial applications
In high-flex, high-abrasion applications—such as cycling inner tubes, pneumatic hoses, and marine webbing—TPU has superseded conventional butyl rubber. Featuring an ultra-high tensile strength of >45 MPa, TPU allows extrusion of thin-walled profiles (down to 0.15mm) without compromising puncture or snakebite resistance. Furthermore, TPU exhibits superior resistance to ozone cracking, UV oxidation, and hydrocarbon degradation, ensuring long shelf life and consistent elasticity across wide ambient temperature spans (-30°C to +80°C).

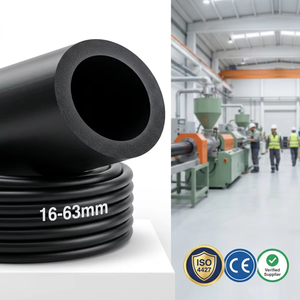

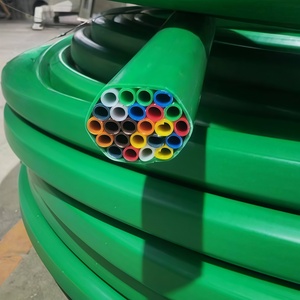

For municipal water mains, agricultural drip systems, and fiber optic telecom conduits, virgin PE100 resin formulation represents the current benchmark for crack-growth resistance (SCG) and minimum required strength (MRS = 10 MPa at 50 years). Multi-way micro-duct bundles (such as 24-way square HDPE configurations) integrate low-friction inner silicone lining layers to maximize air-blown fiber installation distances while maintaining structural crush resistance under heavy soil overlay.
For high-pressure hydraulic cylinders and pneumatic actuators, seamless 2017 aluminum tubing and cold-drawn alloy steel honed pipes deliver structural rigidity with tight inside diameter (ID) tolerances (H8 to H7 classification). Roughness average (Ra) values inner bore smoothing down to <0.2 µm dramatically extends hydraulic seal life, reduces fluid turbulence, and prevents pressure drops under high cycle rates.
| Tube Material Grade | Primary Industrial Domain | Tensile Strength (MPa) | Working Pressure Range | Key OEM Custom Advantage |
|---|---|---|---|---|

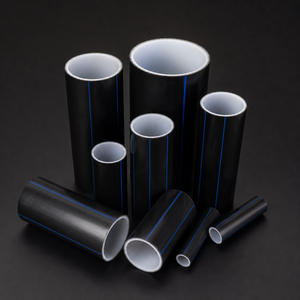

| PE100 High-Density Polyethylene | Municipal Water & Irrigation | 24 – 28 MPa | PN6 to PN16 (16 Bar) | Zero-leak butt fusion welding, non-toxic certification |
| High-Tenacity TPU Elastomer | Pneumatic, Bicycle, Industrial Belting | 40 – 65 MPa | High Flex Dynamic Resistance | 75% weight reduction vs. Butyl, pocket compact size |

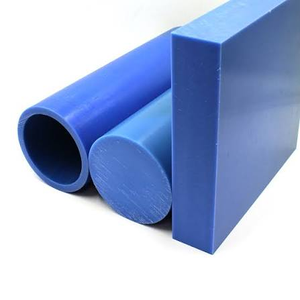

| Industrial MC Nylon (Cast Polyamide) | Heavy Mechanical Wear Liners | 70 – 90 MPa | Structural High-Load Bearing | Self-lubricating, chemical & slurry wear resistant |

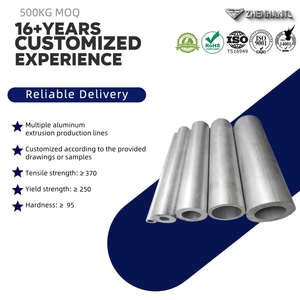

| 2017 Seamless Aluminum Alloy | Aerospace, Automotive, Fluid Lines | 380 – 420 MPa | Medium to High Structural | High strength-to-weight ratio, custom oval/square geometry |

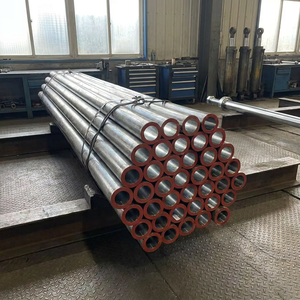

| Precision Honed Steel (ST52/E355) | Hydraulic & Pneumatic Actuators | 520 – 650 MPa | 200 – 350+ Bar Hydrostatic | Internal roughness Ra < 0.2µm, precise H7/H8 ID tolerance |

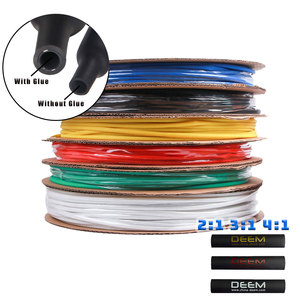

| Dual-Wall Marine Heat Shrink PE | Electrical Insulation & Harnessing | 12 – 15 MPa | Waterproof IP68 Sealing | Meltable inner adhesive liner, custom co-extruded colors |
Strategic sourcing considerations for enterprise buyers, engineers, and supply chain managers
Global logistics demand granular traceability. Our OEM manufacturing process imprints a unique 9-digit product code alongside a batch manufacturing identifier on every meter of tubing, allowing instant verification of resin lot numbers, extrusion parameters, and QA lab test reports.
With international shipping costs fluctuating, high-density polymer tubes (such as flexible coiled PE100 and thin-wall TPU) reduce transport volumetric footprint by up to 60% compared to rigid traditional pipes, drastically lowering landed Total Cost of Ownership (TCO).
Enterprise procurement directives prioritize 100% recyclable thermoplastic materials (such as TPU and HDPE) over thermoset rubbers. Our manufacturing processes incorporate closed-loop regrind management systems and clean energy powered extrusion lines to support client ESG mandates.
A systematic five-stage engineering protocol from custom material formulation to final global shipment
Collaborative structural analysis, pressure threshold calculation, and wall-thickness optimization tailored to your application drawings.
Compounding custom masterbatches, UV-stabilizers, flame retardants, or selecting certified 2017 aluminum / ST52 steel billets.
Multi-axis co-extrusion with continuous laser outer-diameter measuring and ultrasonic wall thickness monitoring in real-time.
Burst testing, tensile elongation verification, inner bore roughness measuring (Ra < 0.2µm), and batch code laser printing.
Custom length coiling, reel winding, automated branding, and global containerized shipping with customs documentation support.
Expert guidance on engineering specifications, OEM customization options, and order logistics
Need custom dimensions, specialized polymer formulations, or precision honed tolerances for your next industrial project? Contact our engineering team today for technical consultation, detailed spec sheets, and competitive B2B quotation pricing.
